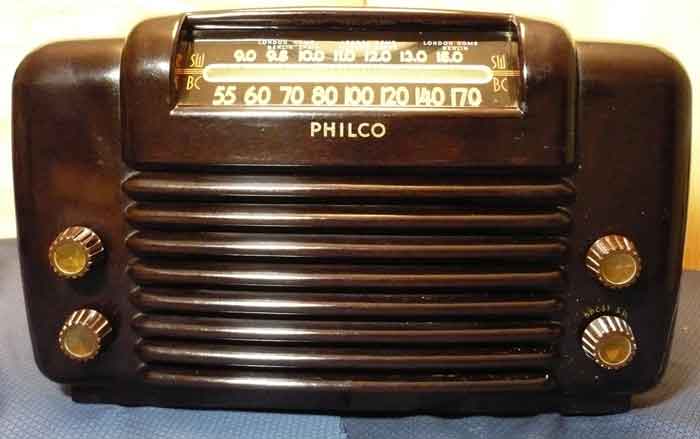

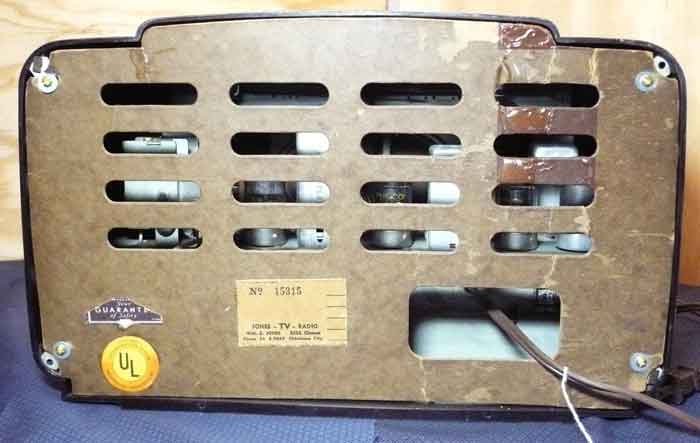

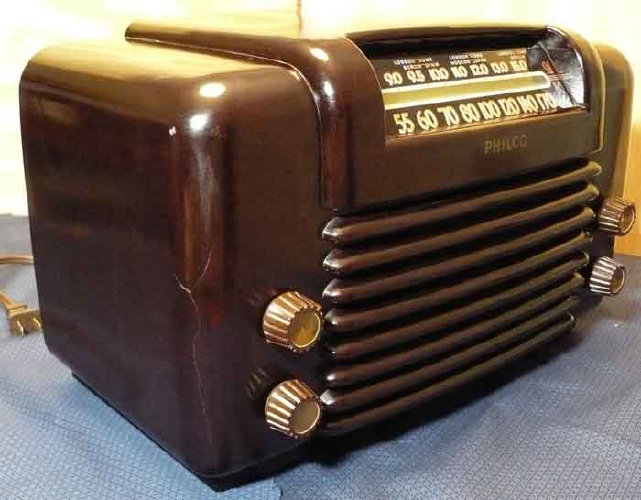

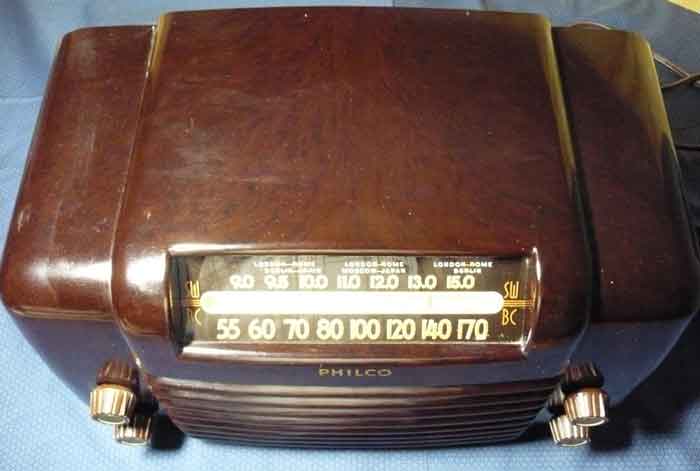

The Philco Radio Model 48-464 is a large bakelite radio receiver. This six-tube superheterodyne radio receiver combines
standard AM broadcast and Short Wave band reception ( 9 MHz - 15.5 MHz).
Year:1948 / Model 48-464
Manufactured: 16,251
Tubes: 6: 7B7, 7B7, 7C6, 50A5, 35Y4, 14AF7
Band: AM Broadcast / SW
IF Frequency:455 KHz
Size: 15.5 x 9.5 x 8.5 inches
Power: AC/DC (110-120)
Power consumption: 30 watts
Cabinet: plastic
Color: dark brown
Aerial :internal loop or external
Manufactured: 16,251
Tubes: 6: 7B7, 7B7, 7C6, 50A5, 35Y4, 14AF7
Band: AM Broadcast / SW
IF Frequency:455 KHz
Size: 15.5 x 9.5 x 8.5 inches
Power: AC/DC (110-120)
Power consumption: 30 watts
Cabinet: plastic
Color: dark brown
Aerial :internal loop or external
Audio Output: 1 Watt
Click on the thumbnail image to magnify view.
Click on the magnified view to return to thumbnails.
Return to Catalog.
Price: $85 (includes the 6.25% state sales tax).
Local pick up only.
